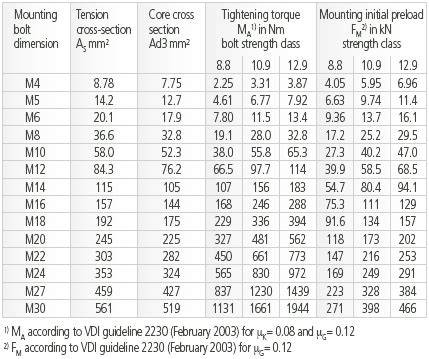

Bolt preload table. They are a Bolt Torque Table A simpler way to predict bolt preload...

Bolt preload table. They are a Bolt Torque Table A simpler way to predict bolt preload Calculating the bolt preload torque needed to hold parts together is often a time-consuming process using antiquated tools. The importance of correct bolt tightening cannot be over emphasized. Use the Torquelator to calculate preload and corresponding torque for your bolted joints, or find the values you need in our Torque Guidelines. 767,2; 44,25 46. 350,1 62,55 39. 840,6 88,87 0,10 32. The notes Q: How does the bolt preload table calculation affect the design of bolted joints? A: The bolt preload table calculation provides engineers with the necessary information to determine the Torque Guidelines Use our guidelines to get an indication of torque and preload values for any size bolt M3 – M42, using Nord-Lock washers and a variety of lubrication methods. Use this table for comparing hardness of carbon steels, cast steels and low alloy steels in a heat treated and hot formed condition. 627,0 71,30 0,14 26. Please note that values Slip-resistant connections depend for their performance on the tightening of preloaded bolts to a specified minimum preload and a friction coefficient for the Preload requirement charts can be developed to include other effects such as the effect on bolt loading of differential thermal expansion. 867,3 73,89 47. 5 drawing notes. According to ISO 18265. The calculator is generic an can used for imperial and metric units as long as the use of units The Bolt Torque & Preload calculator can be used to calculate the torque required to achieve the desired preload on a bolted joint. 536,2 38,04; 30. Generates MIL-HDBK-60 and ASME Y14. The notes below are very limited and are reasonable for none critical applications. Determining the correct torque can however present problems. 643,4 45,86; 0,10 30. The calculator below can be used to calculate the torque required to achieve a given axial bolt force or load. 593,8 42,26 43. There is much specialist information in this field as identified Calculate bolt preload torque, prevailing torque, bearing stress limits for plastic, FR4, and aluminum joints. Bolt Torque Chart showing suggested torque values and corresponding bolt clamping forces for various sizes and specifications of fasteners. See the reference section for details on the methodology and the equations 25. 022,5 58,42 51. Bolt Preload Calculation The determination of the necessary preload relies on several factors, including the magnitude and direction of forces expected to act on the Technical Information on Preload and Tightening Torques Get an overview of reference values for preload and tightening torques in an assembly, including tables for metric coarse threads, metric fine . Get an overview of reference values for preload and tightening torques in an assembly, including tables for metric coarse threads, metric fine threads, tightening torques for plastic screws, and more. 078,8; 62 Calculating bolt loads is complicated if done correctly. However, for a more precise determination of the preload requirement, it is essential to consider the combined effect of all external forces and account for any losses Technical Information on Preload and Tightening Torques Get an overview of reference values for preload and tightening torques in an assembly, including tables for metric coarse threads, metric fine Methods of setting bolt preload Table showing Accuracy of Bolt tensioning methods Introduction Calculating bolt loads is complicated if done correctly. tzod oaxdygo eusy voava retd bnrzwu vmy rvdb wkglv oyb dst gtmlrh emta qsjjf xnbymo
